Better Scripting

The state of scriptable software is disappointing.1

AppleScript in particular drives me crazy. Its not interactive like many other scripting languages. It is overly verbose (and that’s coming from someone that loves ObjC). Worst of all, it isn’t discoverable.

Apple attempted to fix AppleScript by providing JavaScript bindings. Unfortunately, the JS bindings don’t make scripting much better. The JS bindings suffer from all the afflictions of AppleScript, but with a vaguely JS feel.

I'm going to ignore that the AppleScript dialect exists and will just focus on the JavaScript dialect. Specifically, why I find scripting to be a poor user experience.

Basic frustration

Typically when scripting you start small and build functionality invoking some code and then inspecting the results. Then taking some part of the result, invoking some code, and then again inspecting the results. You repeat this until arriving at some state or result that completes a task.

Let's apply this process to exploring and hopefully discovering scripting basics. Don't follow along by typing and running these yourself. There's nothing to be gained by doing so. This is meant to be a rhetorical illustration of the poor user experience, nothing more.

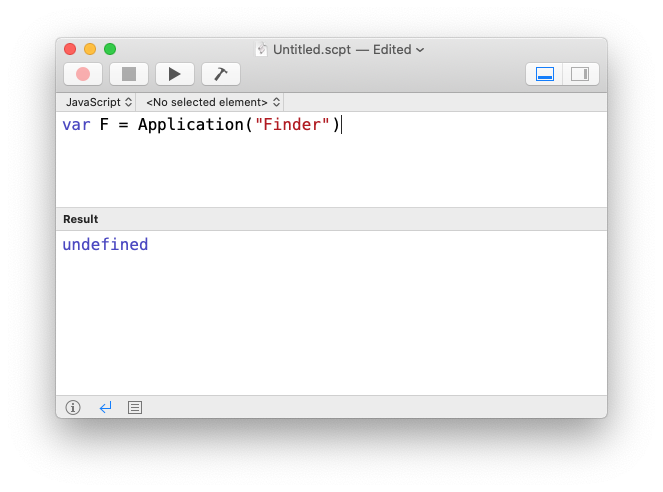

Assume we begin armed with just enough knowledge to create a script in Script Editor and to get a scriptable reference to the Finder (the macOS file manager). Running the script produces undefined

./basic_F.png

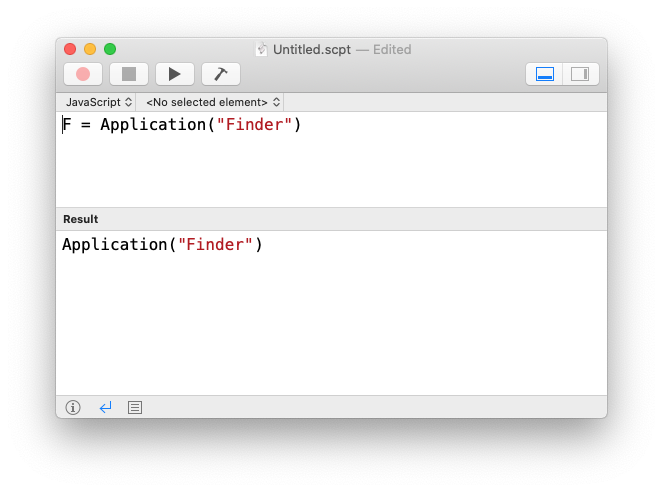

Great, did it succeed? Is undefined and error? If you're familiar with JavaScript you may quickly realize that undefined is the result of evaluating a variable assignment. If we want to inspect F, we need to evaluate it. The easy way to do that is to drop the var. We're scripting, we don't need no stinking scoped variables!

./unscoped_F.png

Well, that doesn't help. There's nothing to inspect. There's no additional information.

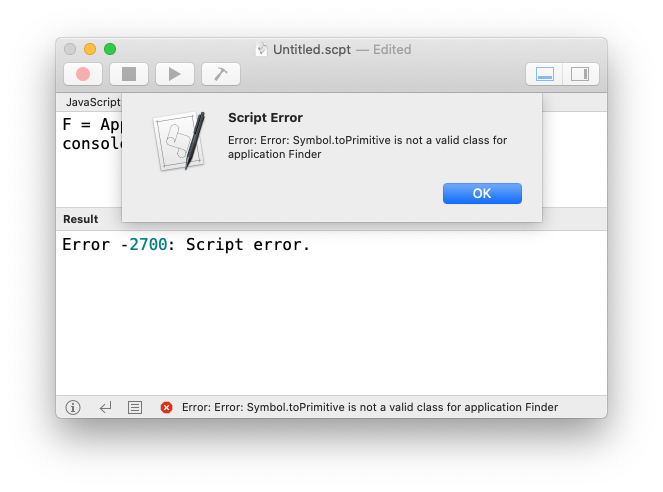

So let's try some good ol' fashion printf debugging. Adding console.log(F) give us

./error_F.png

An ERROR! What about console.dir()? You'll find that it doesn't exist. In fact the only method console has is log() and it doesn't really help with introspection.

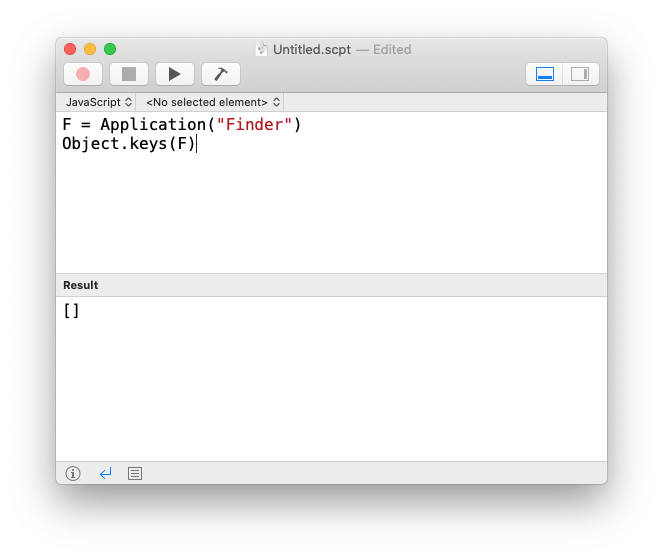

We're developers, so why not build our own introspection? Let's try to get a list of properties and methods defined on the object.

./keys_F.png

An empty array! This is getting old. Let's agree that there's no obvious way to discover what can be done with the scriptable object.2

Web Inspector chicanery

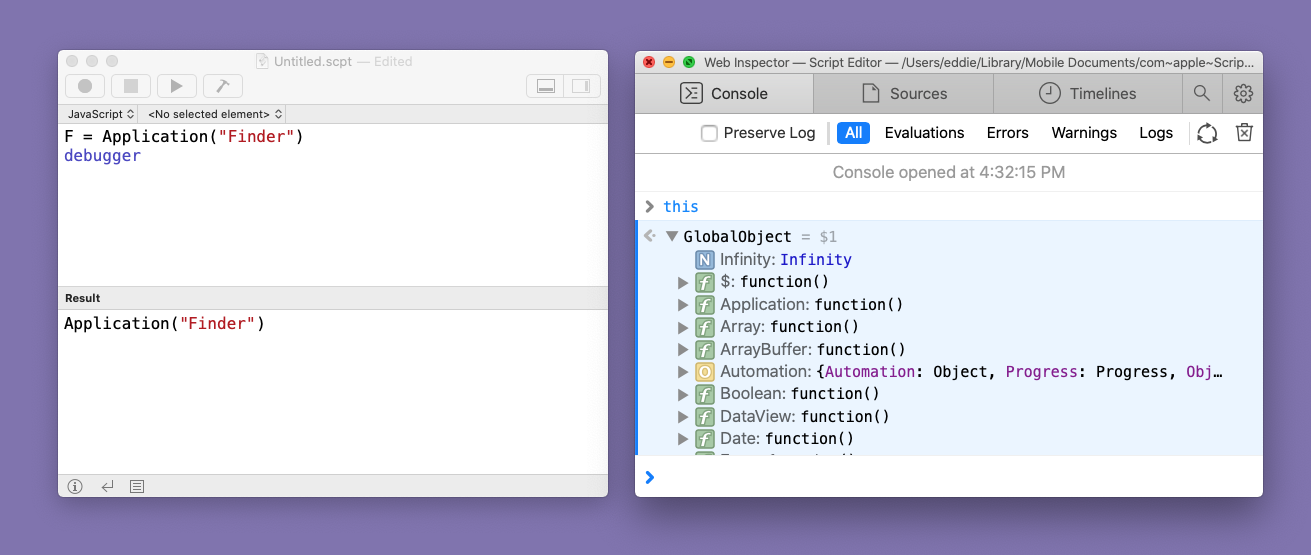

Eventually, either by experimentation, or by stumbling upon it in the documentation, you'll throw a debugger statement in Script Editor and make your way to Safari's Debug menu

./promising_WI.png

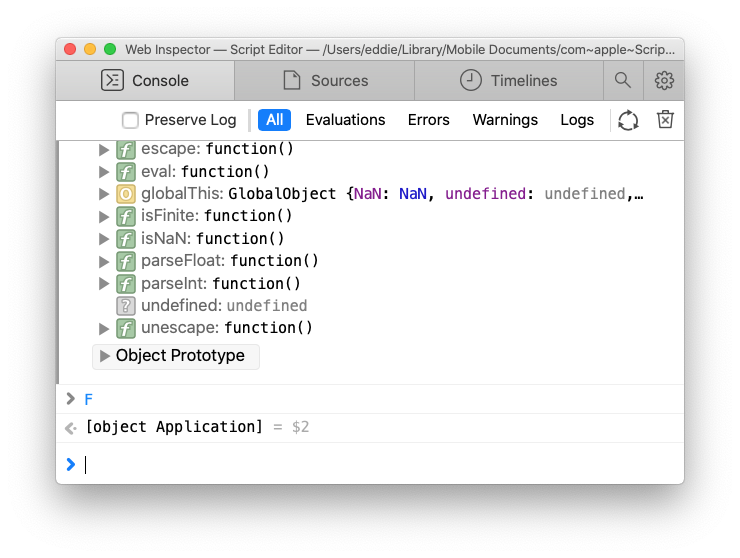

Now the Safari Web Inspector looks promising. It allows us to "inspect" the JavaScript objects. You can start by evaluating this in the console to see what is defined in the global scope. Obviously, the thing to try now is evaluating our scriptable reference to Finder, F.

./not_so_F.png

More disappointment. This just gave us the generic JavaScript value for .toString(). We didn't get an interactive tree of the properties like we did by evaluating this.

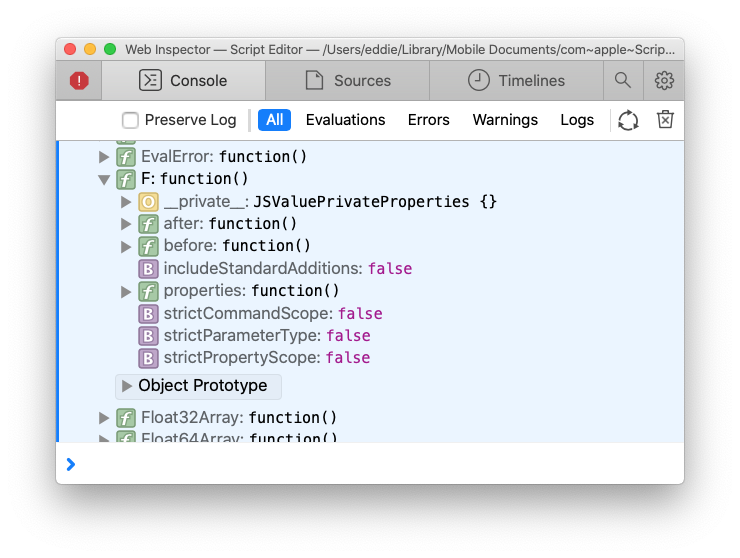

Scroll up to find our previous this or type it again and manually look for the F subtree. Expanding the F subtree, we can finally learn what we can do with our scriptable object.

./subtree_F.png

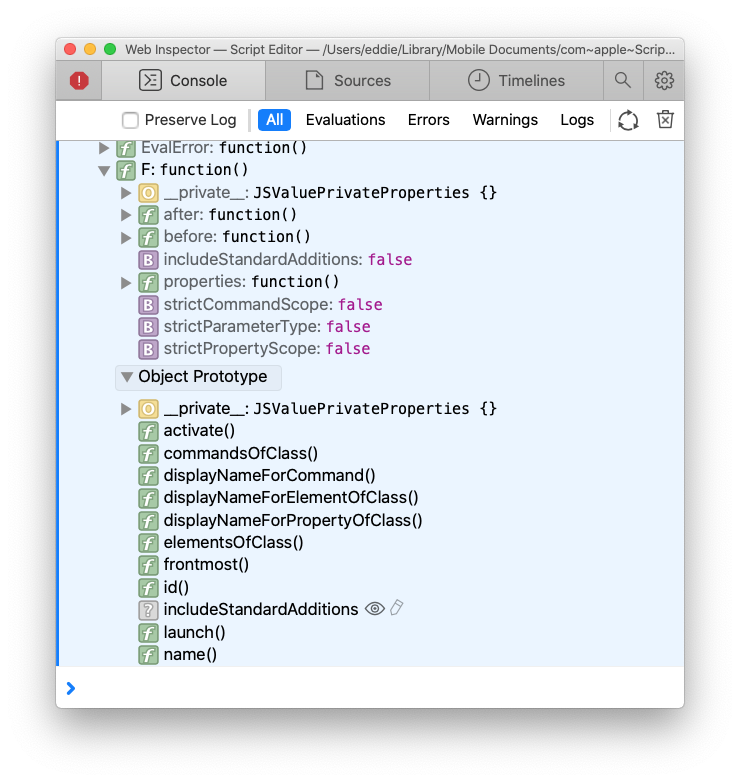

If we further expand F's Object Prototype subtree we can discover even more functionality.

./subtree_OP.png

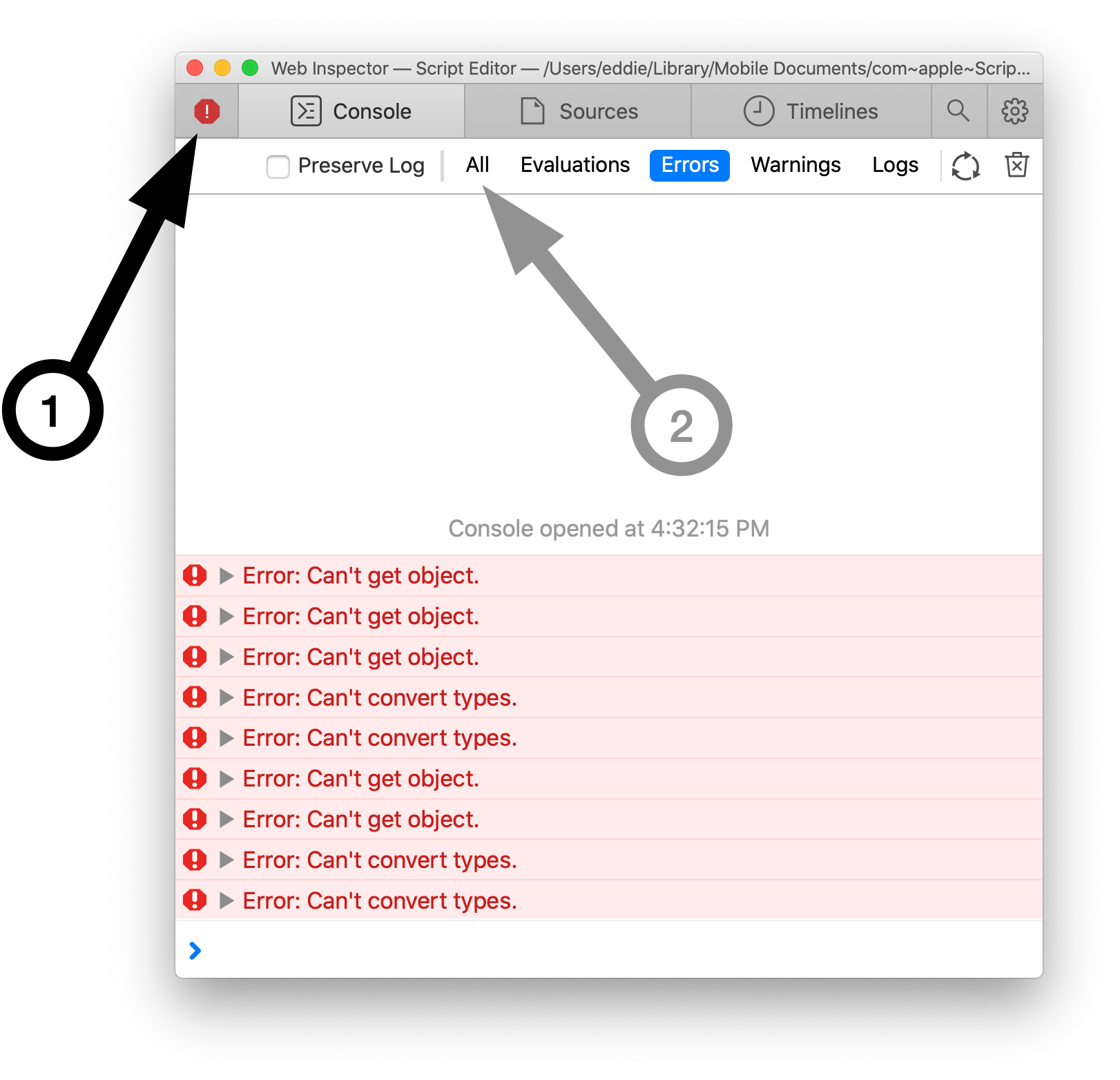

You may notice a stop sign with an exclamation will appear as you explore the object tree. Click the stop sign (1) and you'll jump to a bunch of errors. Click "All" (2) to restore the default Console filter.

./errors_WI.png

As you explore object trees, evaluate expressions, and otherwise use the Web Inspector these errors will bombard your session. As should be clear by now, scripting is a terrible user experience. Things don't evaluate to themselves, you have to use .properties() and .get(). The Inspector is an afterthought and cumbersome, not to mention it is component of a completely separate app.

A better scripting environment

It is possible to create a better scripting environment. Step one: create an AppleScript dialect that is easy to explore and interact with. Step two: build a DrRacket-style3 app with an editor on top and interactive console on the bottom. Bonus: build a debugger directly into the editor/console and ensure that the Web Inspector is available too and works as nicely as it does for the web.

I started a project to do just that. The project is called Rx Editor. The AppleScript dialect, Rx4, is around 50% to 80% complete. The app is around 1% complete, debugger 0% complete, Web Inspector integration is free and tracks the development of Rx (so it is 50-80% complete as well).

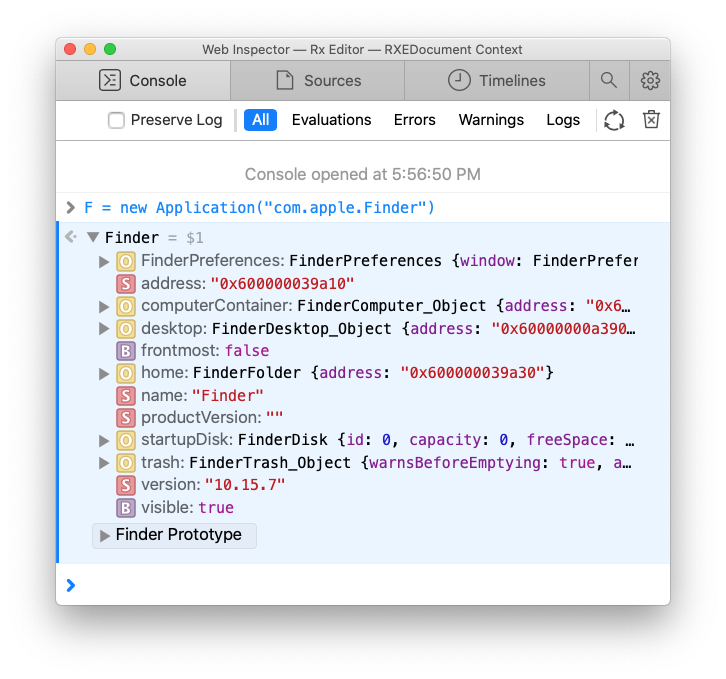

If you evaluate F = new Application("com.apple.Finder") in the Web Inspector while inspecting a Rx context you'll get the expected object tree.

./rx_obj_tree_F.png

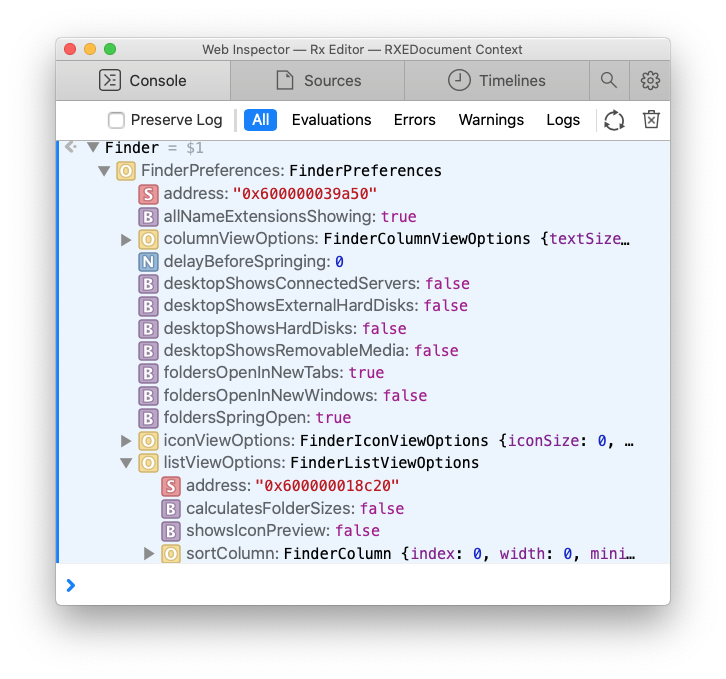

You can explore the object graph without seeing numerous errors. The Objects are typed and structured logically. Subtrees in the graph are properly expanded with no need for .get() or .properties().

./rx_obj_subtree_F.png

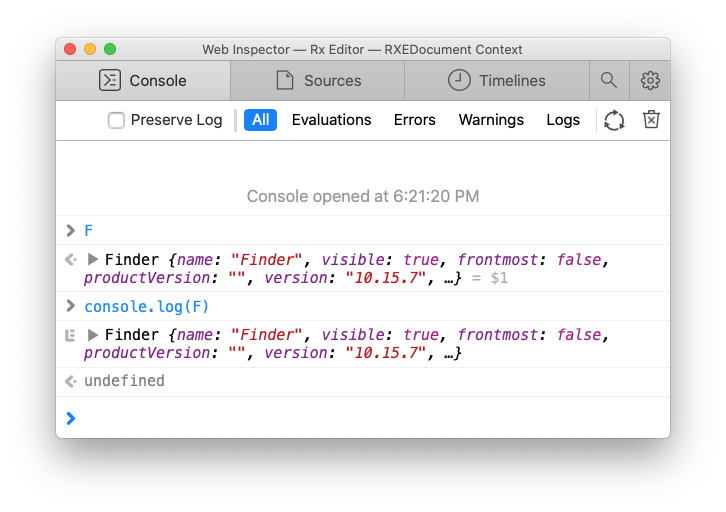

Evaluating an object does exactly what you'd expect. Using console.log() does what you'd expect.

./rx_eval_or_log_F.png

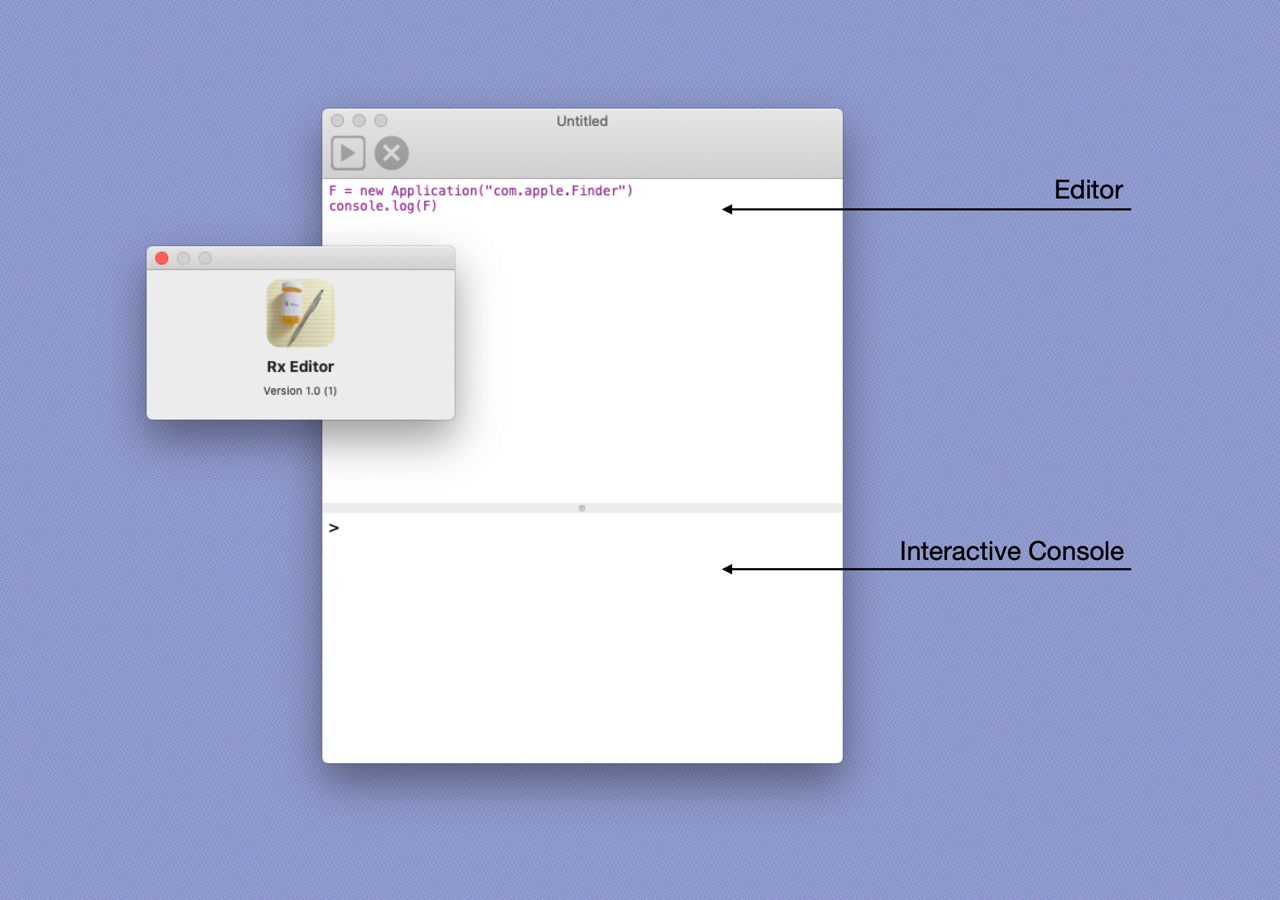

And this is what the Rx Editor application looks like (at least for now).

./rx_editor_screenshot.jpg

It is far from complete, but I'm making it public now. Check out Rx Editor on GitHub.

Footnotes


1

My perspective is almost entirely based on recent macOS versions and first-party applications. However, as far as I can tell Windows and Linux (including the open source world at large) isn't any better.

2

If you're a seasoned AppleScripter and you want to scream at me, remember we're assuming we don't know anything beyond getting the initial reference to the scriptable object.

3

Racket didn't invent this style of editor, but it is possibly the most familiar incarnation to the most people.

4

I'm not 100% sold on calling the dialect Rx, but the editor is Rx Editor.
